TMB series TROMMEL SCREENING BUCKET
TMB-60
TMB-135
TMB-200
TMB-300

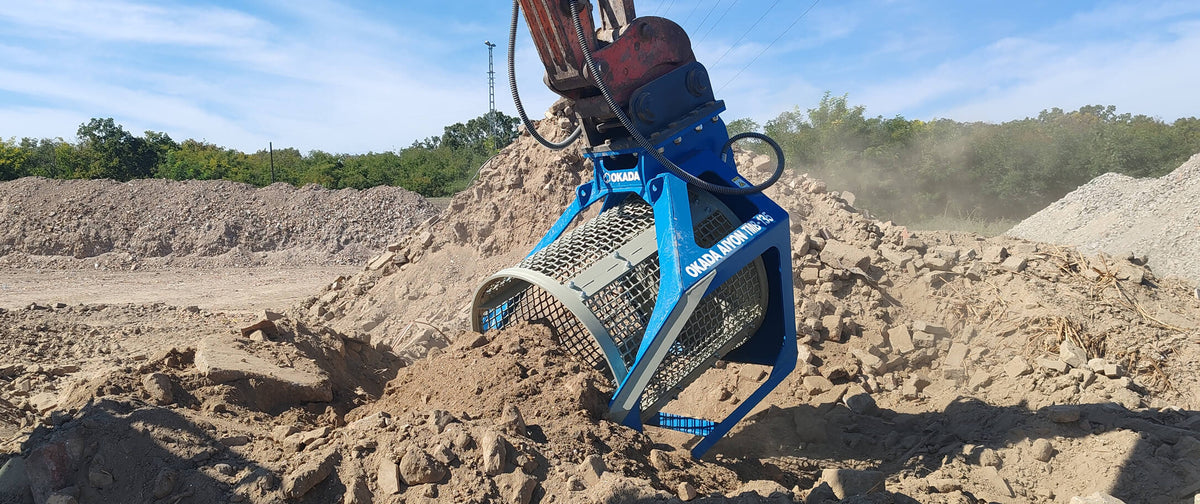

From C&D debris and gravel to incinerator ash and excavated stone — the TMB Trommel Screening Bucket separates what's useful from what isn't, right on site. A lightweight yet heavy-duty frame structure keeps operation agile, while the unique built-in flow control valve delivers smooth, fine-tuned drum rotation without extra hydraulic plumbing on the carrier. Reduced noise and vibration keep the work environment manageable, and a front support handles heavy loads with confidence. Available in four sizes for carriers from 6 to 40 tons.

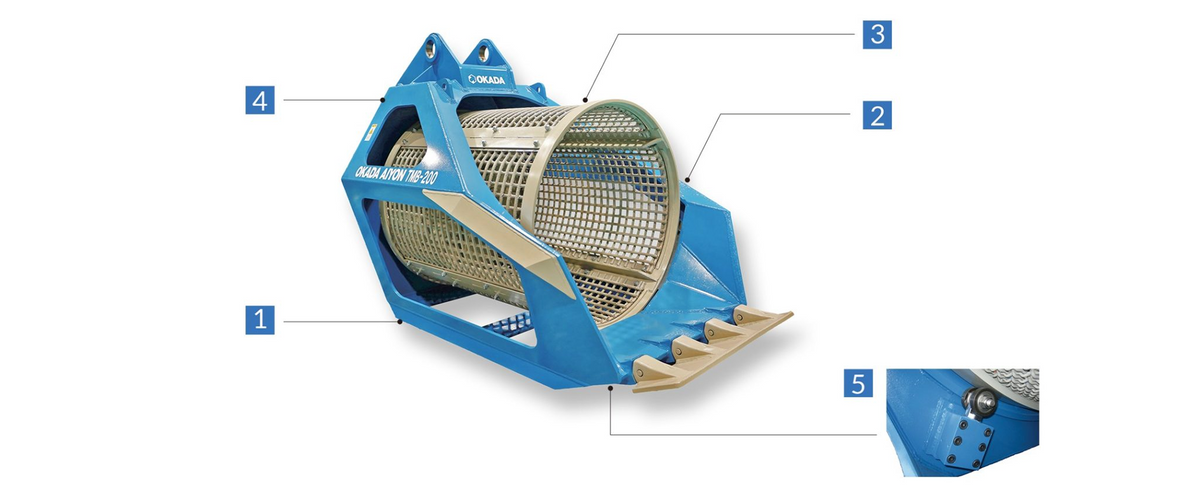

Features
1
SCREENING DEBRIS: Soil, garbage and various objects.
2
Light weight, heavy duty frame structure.
3
Reduced noise & vibration.
4
Unique built-in flow control valve provides smooth operation.
5
Front support for heavy loads.
Specification
TMB series TROMMEL SCREENING BUCKET
| UNIT | TMB-60 | TMB-135 | TMB-200 | TMB-300 | |
|---|---|---|---|---|---|
| Operating Weight | kg | 770 | 1650 | 2360 | 3090 |
| Overall Length | mm | 1820 | 2350 | 2580 | 3050 |
| Overall Width | mm | 1050 | 1550 | 1680 | 1680 |
| Overall Height | mm | 1310 | 1670 | 1835 | 2010 |
| Screen Diameter | mm | 815 | 1100 | 1200 | 1400 |
| Screen Length | mm | 950 | 1250 | 1400 | 1600 |
| Suitable Carrier Range | Ton | 6-9 | 10-16 | 20-25 | 30-40 |
Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
