TS-WB series PRIMARY CRUSHER
TS-WB250
TS-WB350
TS-WB500V
TS-WD500V
TS-WD720V
TS-WB950V
TS-WB1100V
TS-WB1400V
TS-WD1700V
TS-WB1900V
TS-WD2200V
TS-WB2400V
TS-WD2800V

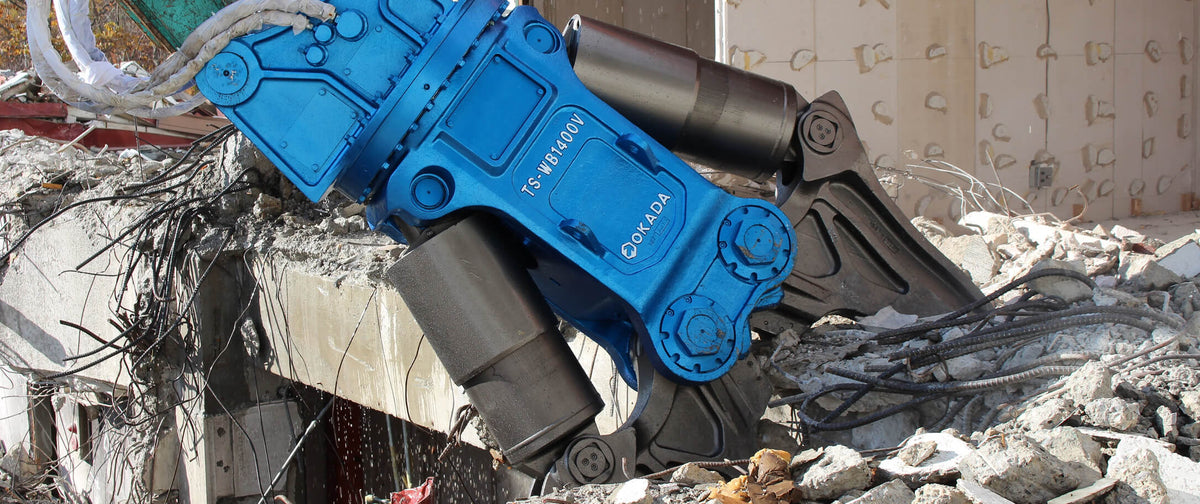

Built to break what others can't touch. When reinforced concrete meets the TS-WB, it doesn't stand a chance. A wider and deeper crushing area takes on massive structures head-on, while the wedge arm penetrates deep into concrete with precision force. The cylinder rod stays shielded by a dedicated rod cover, protecting performance under the harshest conditions. Backed by a special casting alloy for lightweight durability, a high-speed oil flow valve for fast cycle times, and a robust rotator with durable bearing — the TS-WB series scales from 1.5-ton mini carriers all the way to 100-ton-plus machines.

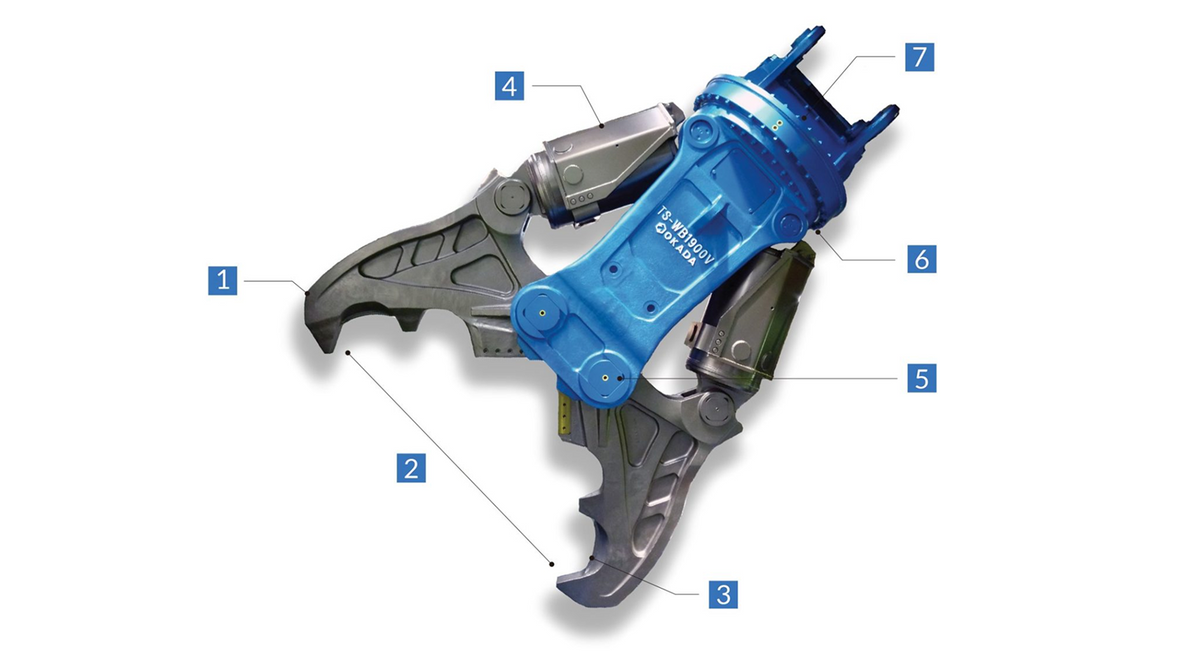

Features
1
The special casting alloy used delivers a lightweight crusher with superior durability.
2
Wider and deeper crushing area.
3
The wedge arm penetrates concrete structures.
4
The cylinder rod is protected by a rod cover. (Except for the TS-WB250, TS-WB350, TS-WD500V models).
5
Robust assembly.
6
A high oil flow speed valve reduces cycle time. (Except for the TS-WB250, TS-WB350 models.)
7
The strong rotator features a durable bearing.
Specification
TS-WB series（Small Range）
| UNIT | TS-WB250 | TS-WB350 | TS-WD500V | TS-WD720V | |
|---|---|---|---|---|---|
| Rotation Type | - | FR | FR | FR/HR | FR/HR |
| Operating Weight | kg | 170 | 270 | 530/540 | 920/960 |
| Overall Length | mm | 925 | 1070 | 1480 | 1870 |
| Overall Width | mm | 615 | 680 | 835 | 1215 |
| Max. Jaw Opening/Closing | mm | 250/0 | 350/0 | 500/0 | 720/0 |
| Crushing Force (at Tip) | kN | 180 | 240 | 330 | 355 |
| Excavator Set Pressure | MPa | 21 | 25 | 25 | 28 |
| Suitable Carrier Range | Ton | 1.5-2.5 | 2.5-4 | 4-8 | 6-13 |
| Speed Valve | - | - | - | Yes | Yes |
TS-WB series（Medium Range）
| UNIT | TS-WB950V | TS-WB1100V | TS-WB1400V | TS-WD1700V | |
|---|---|---|---|---|---|
| Rotation Type | - | FR/HR | FR/HR | FR/HR | HR |
| Operating Weight | kg | 1780/1860 | 2660/2720 | 4520/4580 | 5250 |
| Overall Length | mm | 2140/2280 | 2525/2635 | 2970 | 3160 |
| Overall Width | mm | 1405 | 1625 | 1995 | 2335 |
| Max. Jaw Opening/Closing | mm | 950/0 | 1100/0 | 1400/0 | 1700/0 |
| Crushing Force (at Tip) | kN | 605 | 940 | 1100 | 1280 |
| Excavator Set Pressure | MPa | 35 | 35 | 35 | 35 |
| Suitable Carrier Range | Ton | 12-25 | 20-35 | 30-50 | 40-70 |
| Speed Valve | - | Yes | Yes | Yes | Yes |
TS-WB series（Heavy Range）
| UNIT | TS-WB1900V | TS-WD2200V | TS-WB2400V | TS-WD2800V | |
|---|---|---|---|---|---|
| Rotation Type | - | HR | HR | HR | HR |
| Operating Weight | kg | 8200 | 10510 | 12810 | 19000 |
| Overall Length | mm | 3560 | 3705 | 4050 | 4800 |
| Overall Width | mm | 2600 | 3090 | 3160 | 3800 |
| Max. Jaw Opening/Closing | mm | 1900/0 | 2200/0 | 2400/0 | 2800/0 |
| Crushing Force (at Tip) | kN | 2000 | 2100 | 2150 | 2840 |
| Excavator Set Pressure | MPa | 35 | 35 | 35 | 35 |
| Suitable Carrier Range | Ton | 70-100 | 80-120 | 160- | 330- |
| Speed Valve | - | Yes | Yes | Yes | Yes |
Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
