OD Series
OD-060R
OD-120R
OD-200R

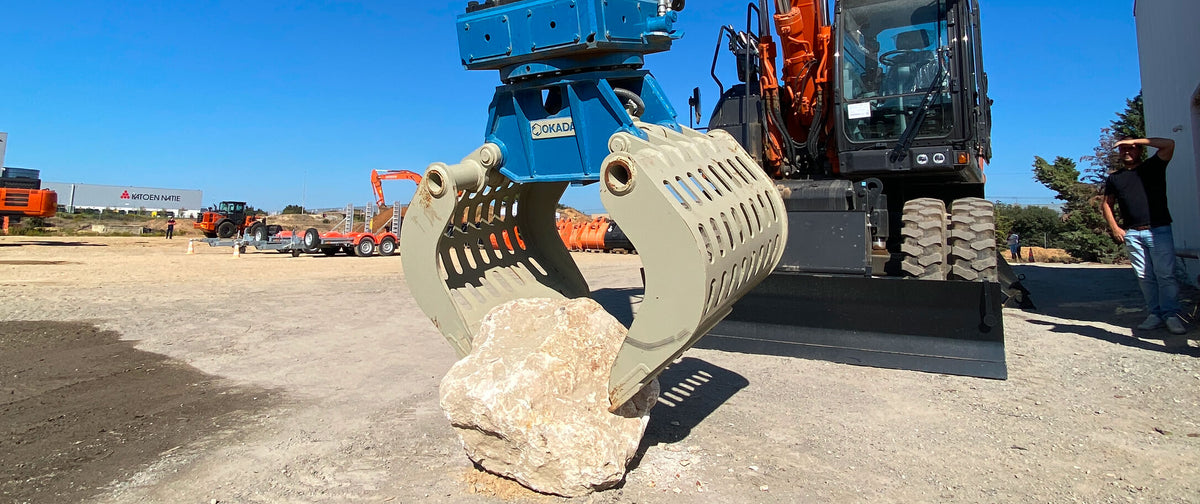

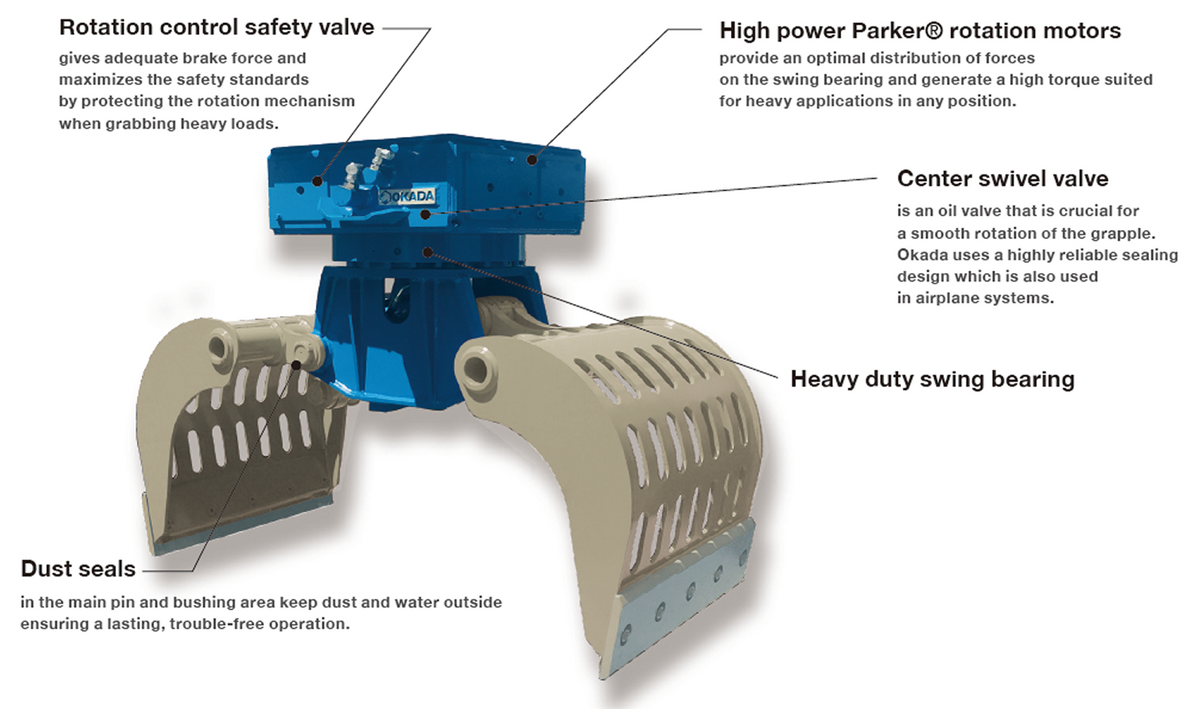

Drawing on decades of Okada engineering experience, the OD series Grapple is built for every demolition and recycling task with minimal maintenance demands. High-power Parker rotation motors, an aerospace-grade center swivel valve, and heavy-duty swing bearings with dust seals work together to deliver smooth, high-torque performance that holds up in any condition.
Features
Specification
OD Series
| UNIT | OD-060R | OD-120R | OD-200R | |
|---|---|---|---|---|
| Operating Weight | kg | 480 | 850 | 1350 |
| Overall Height | mm | 1235 | 1375 | 1635 |
| Max Shelves Opening | mm | 1550 | 1820 | 2110 |
| Shell Width | mm | 700 | 800 | 900 |
| Operating Pressure for Cylinder | MPa | 31.4 | 35 | 35 |
| Maximum Oil Flow for Cylinder | L/min | 40-60 | 50-70 | 100-120 |
| Operating Pressure for Rotation | MPa | 16 | 16 | 16 |
| Maximum Oil Flow for Rotation | L/min | 15 | 30 | 30 |
| Grabbing Force | kN | 24 | 35 | 56 |
| Base Machine Weight | Ton | 6-12 | 12-18 | 18-28 |
| Rotating Motor | - | 1 | 2 | 2 |
Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
