OSC series FIX PULVERIZER
OSC-35BV
OSC-70BV
OSC-135BV
OSC-280AV
OSC-380AV
OSC-500AV
OSC-650AV

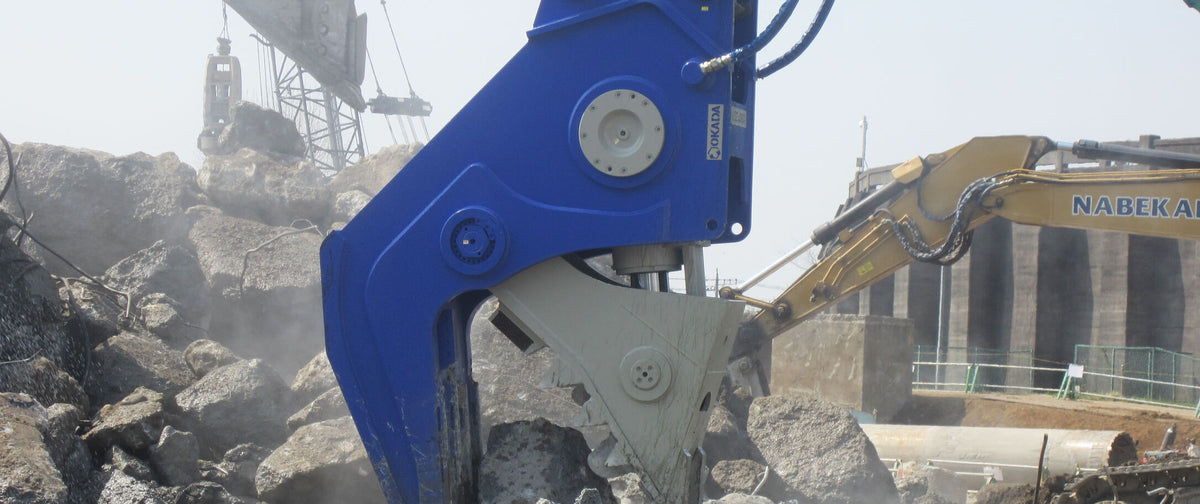

Built to meet the growing demand for concrete waste reduction and recycling, the OSC Series delivers powerful, efficient demolition performance. Its flat, wide jaw design and integrated speed valve enable fast gripping and rapid crushing of large concrete sections for maximum productivity.

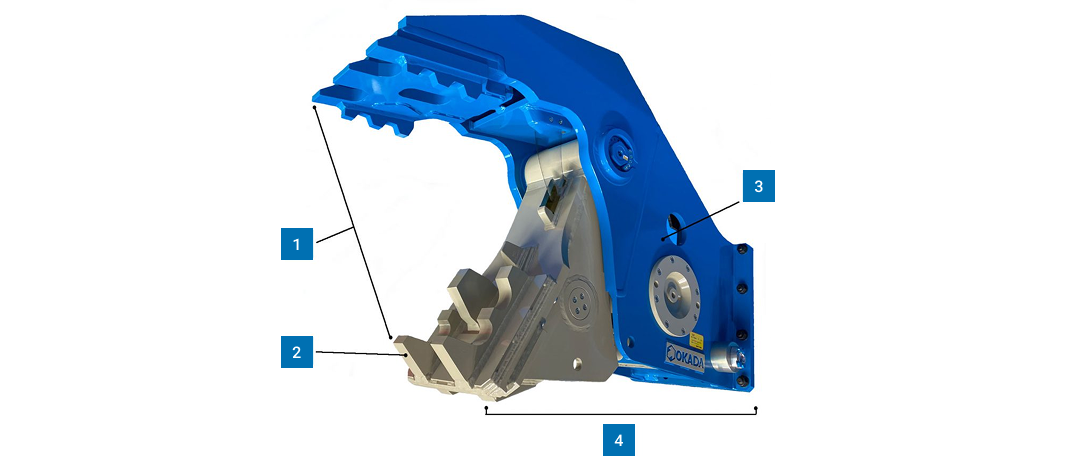

Features
1
Large jaw opening and crushing area ensure unmatched productivity.
2
“Shell-shaped wedge” provides high crushing ability.
3
A high flow speed valve built into the cylinder achieves the faster cycle time in its class.
4
Short body: Easy to operate.

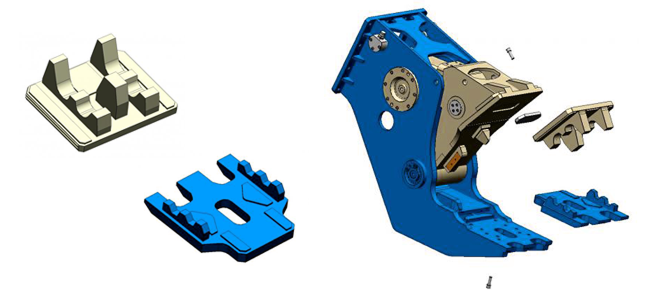

BOLT-ON TOOTH PLATE SYSTEM
Specification
OSC series PULVERIZER
| UNIT | OSC-35BV | OSC-70BV | OSC-135BV | OSC-280AV | OSC-380AV | OSC-500AV | OSC-650AV | |
|---|---|---|---|---|---|---|---|---|
| Operating Weight | kg | 350 | 720 | 1180 | 2130 | 3750 | 5640 | 6460 |
| Overall Length | mm | 1230 | 1585 | 1855 | 1900 | 2610 | 3110 | 3625 |
| Overall Height | mm | 715 | 955 | 1175 | 1365 | 1715 | 2135 | 2210 |
| Cutter Blade Length | mm | 90 | 100 | 150 | 150 | 180 | 215 | 215 |
| Max. Jaw Opening | mm | 425 | 600 | 730 | 885 | 1020 | 1465 | 1500 |
| Crushing Force (Center) | kN | 315 | 450 | 600 | 880 | 965 | 1115 | 1400 |
| Excavator Set Pressure | MPa | 25 | 30 | 35 | 35 | 35 | 35 | 35 |
| Suitable Carrier Range | Ton | 3-5 | 6-9 | 10-16 | 18-30 | 30-50 | 40-100 | 50-100 |
| Speed Valve | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
