ORC series ROTATING PULVERIZER
ORC-280AVHR
ORC-380AVHR

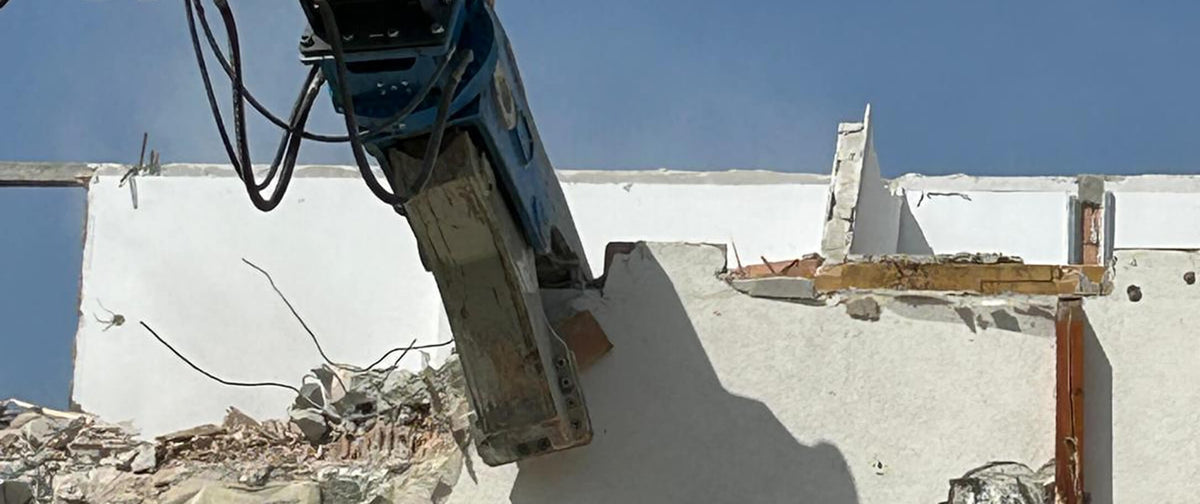

Designed for precision and versatility, the ORC Series efficiently processes concrete walls, bricks, and large concrete lumps into smaller, manageable pieces. Its rotating function enhances maneuverability and control, ensuring fast, effective crushing in any working position.

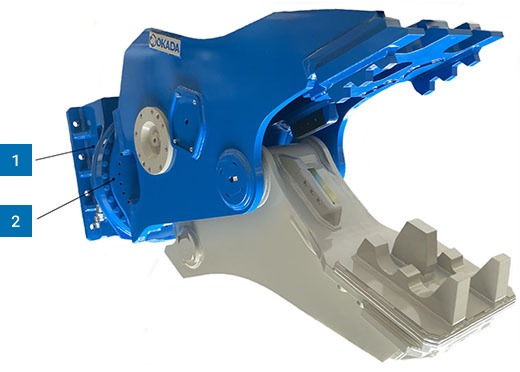

Features
1
A high oil flow speed valve built into the cylinder reduces cycle time.
2
Strong rotator with durable bearing.

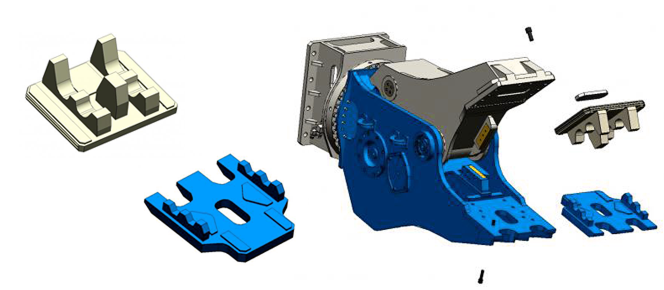

BOLT-ON TOOTH PLATE SYSTEM
Specification
ORC series ROTATING PULVERIZER
| UNIT | ORC-280AV | ORC-380AV | |
|---|---|---|---|
| Rotation Type | - | HR | HR |
| Operating Weight | kg | 2610 | 4520 |
| Overall Length | mm | 2255 | 2795 |
| Overall Height | mm | 1230 | 1495 |
| Cutter Blade Length | mm | 180 | 215 |
| Max. Jaw Opening | mm | 835 | 1000 |
| Crushing Force (Center) | kN | 750 | 1110 |
| Excavator Set Pressure | MPa | 35 | 35 |
| Suitable Carrier Range | Ton | 22-38 | 35-50 |
| Speed Valve | - | Yes | Yes |
Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
