TSRC series
TSRC-1000V
TSRC-1300V
TSRC-1700V

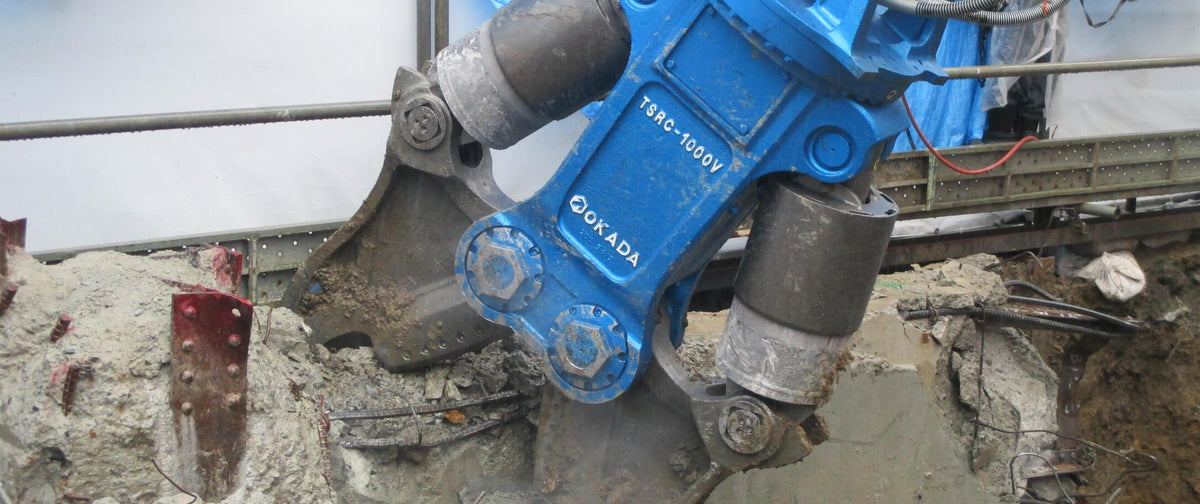

One attachment. Every demolition challenge. Concrete buildings, steel bridges, steel frames — the TSRC Multi-Crusher takes them all on without switching tools. The arched cutter blade delivers robust cutting ability alongside crushing forces up to 2,850 kN, while a special casting alloy keeps the body light without compromising durability. Robust assembly, a high-speed oil flow valve, and a strong rotator with durable bearing round out a machine built for the most demanding sites.

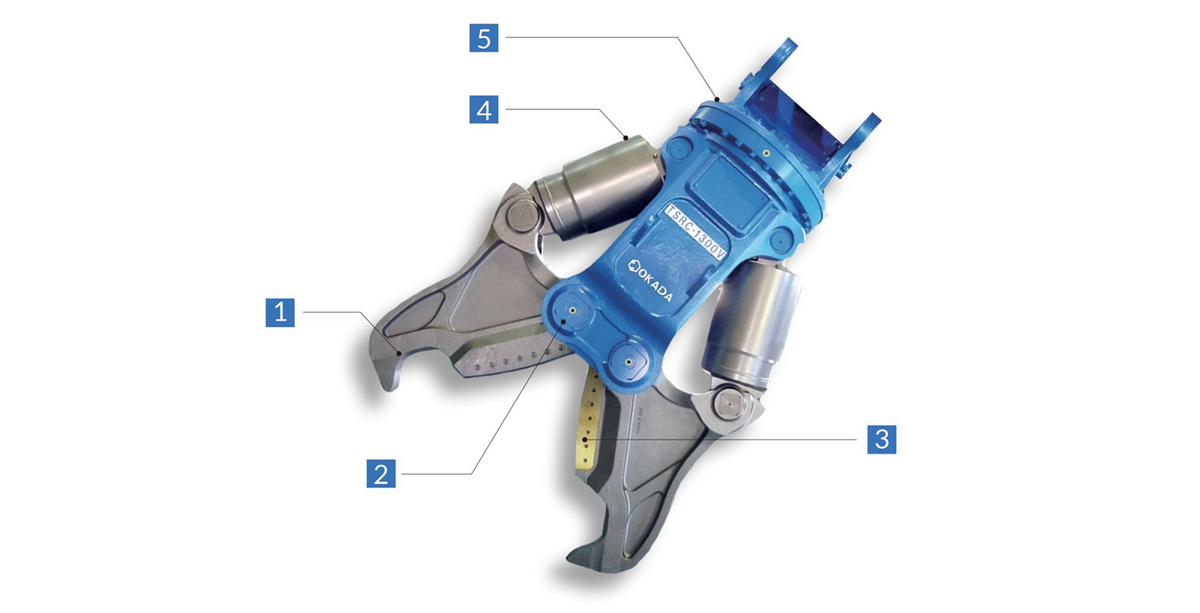

Features
1
The special casting alloy used delivers a lightweight crusher with superior durability.
2
Robust assembly.
3
The arched cutter blade provides robust cutting ability.
4
A high oil flow speed valve reduces cycle time.
5
Strong rotator with a durable bearing.
Specification
TSRC series
| UNIT | TSRC-1000V | TSRC-1300V | TSRC-1700V | |
|---|---|---|---|---|
| Rotation Type | - | FR/HR | FR/HR | FR/HR |
| Operating Weight | kg | 2730/2820 | 4450/4510 | 8420 |
| Overall Length | mm | 2445/2555 | 2920/2920 | 3630 |
| Overall Width | mm | 1540 | 1900 | 2430 |
| Jaw Opening Max. / Min. | mm | 1000/0 | 1300/0 | 1700/0 |
| Cutter Blade Length | mm | 480 | 550 | 650 |
| Cutting Force (Center) | kN | 2470 | 2850 | 4880 |
| Cutting Force (Tip) | kN | 950 | 1100 | 1850 |
| Operating Pressure | MPa | 35 | 35 | 35 |
| Suitable Carrier Range | Ton | 20-35 | 30-50 | 60-100 |
| Speed Valve | - | Yes | Yes | Yes |
Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
