TS-W series CROSS CUTTER

TS-W650XCV

TS-W900XCV

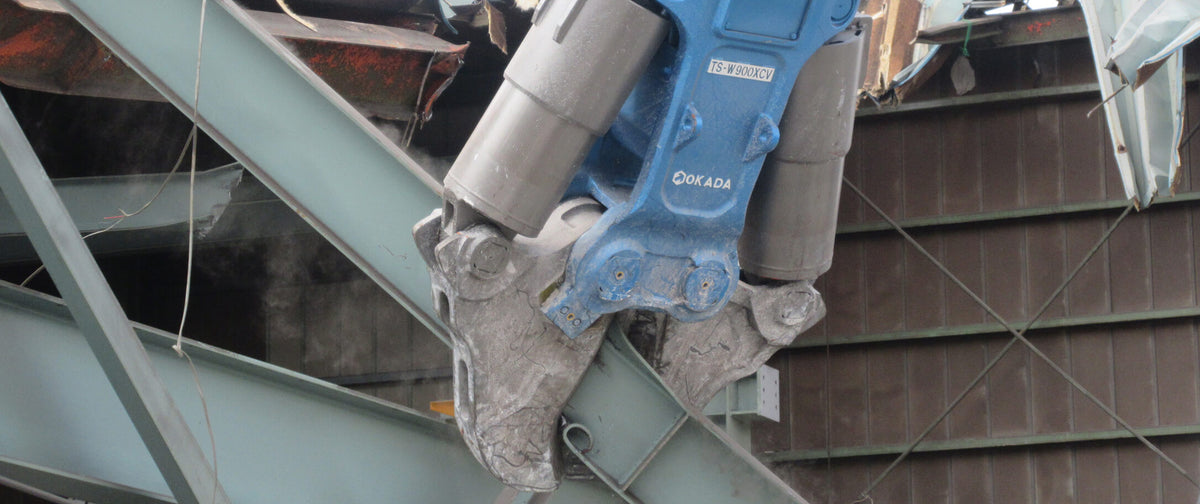

The crossed cutter blades do what others can't, punching a hole through the object to cut materials bigger than the blade length itself. The TS-W Cross Cutter tackles steel frame structures from any angle, backed by a special casting alloy that keeps weight low and durability high. A high-speed oil flow valve keeps cycle times sharp, while the robust rotator with durable bearing holds steady through every demanding shift. Cut beyond limits — in every direction.

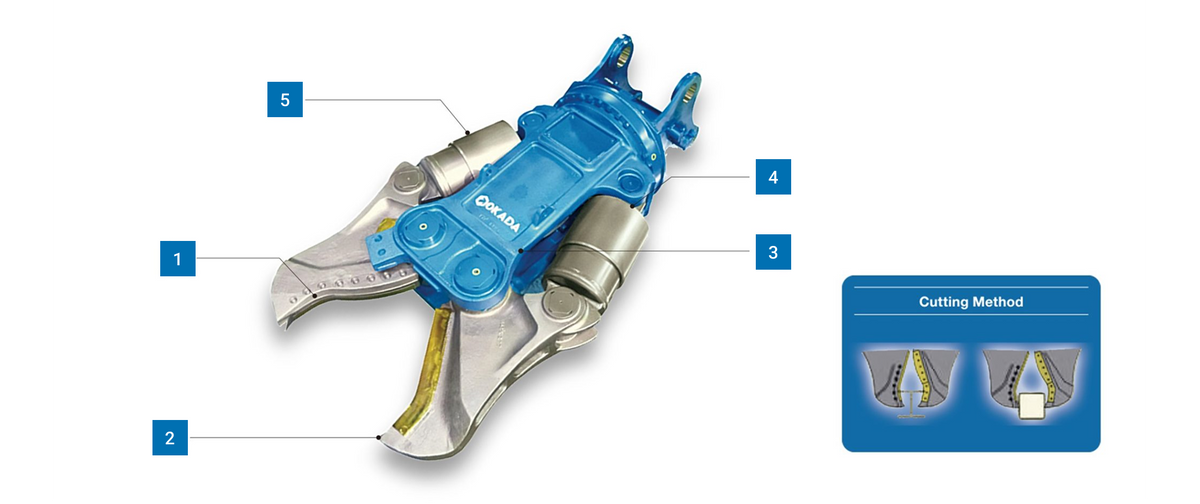

Features

1
Able to cut loose objects on the ground.
2
The crossed cutter blades can punch a hole in the object, making it possible to cut objects bigger than the cutter blade length.
3
The special casting alloy used delivers a lightweight shear with superior durability.
4
A high oil flow speed valve reduces cycle time.
5
The robust rotator feafures a durable bearing.

Specification

TS-W series CROSS CUTTER

UNIT TS-W650XCV TS-W900XCV
Rotation Type - FR/HR FR/HR
Operating Weight kg 2620/2680 4480/4480
Overall Length mm 2370/2480 2880
Overall Width mm 1350 1615
Max. Jaw Opening mm 680 1615
Cutter Blade Length mm 640 700
Cutting Force (Center) kN 1500 2650
Cutting Force (Tip) kN 800 1260
Excavator Set Pressure MPa 35 35
Suitable Carrier Range Ton 20-25 30-40
Speed Valve - Yes Yes

Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
