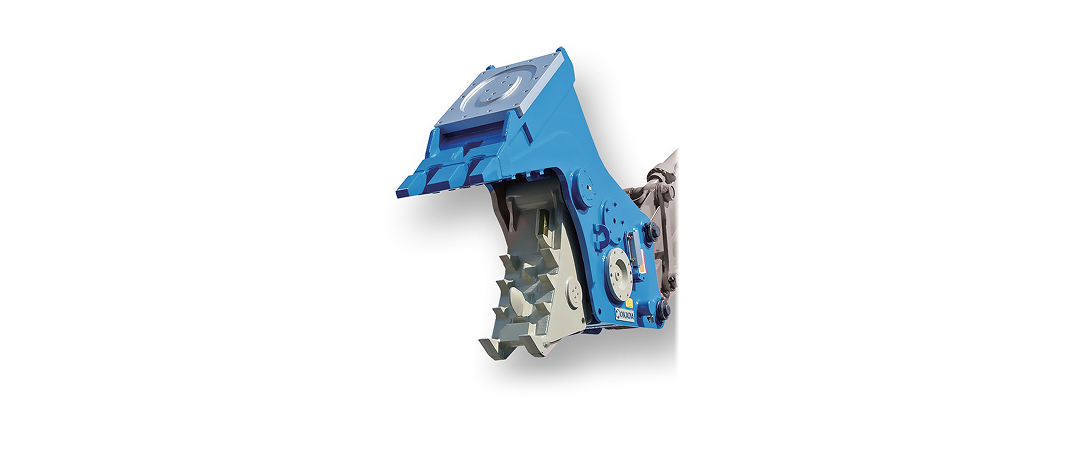

OSC series PULVERIZER Electromagnet
OSC-200HMAV
Powered directly by the carrier machine’s 24V battery, the electromagnet operates without the need for an additional generator, ensuring simple installation and efficient on-site performance.
Features
Specification
OSC series PULVERIZER（Electromagnet Type）
| UNIT | OSC-200HMAV | |
|---|---|---|
| Operating Weight | kg | 2290 |
| Overall Length | mm | 2075 |
| Overall Height | mm | 1560 |
| Cutter Blade Length | mm | 150 |
| Max. Jaw Opening | mm | 870 |
| Crushing Force (Center) | kN | 880 |
| Excavator Set Pressure | MPa | 35 |
| Suitable Carrier Range | Ton | 18-30 |
| Magnet Size | mm | 690 x 540 |
| Voltage for Magnet | V | 24 |
| Speed Valve | - | Yes |
