TS-WB series CUTTER
TS-WB600CV
TS-WB700CV
TS-WB800CV
TS-WB900CV
TS-WB1000CV
TS-WB1150CV
The master of steel demolition — cut deeper, move faster, outlast the rest. Special casting alloy delivers lightweight handling without sacrificing durability. The longest cutter blade in its class, powered by the press & cut method, with a high-speed oil flow valve that keeps cycle times razor-sharp. From 20 to 200-ton carriers — the TS-W series scales with your ambition.

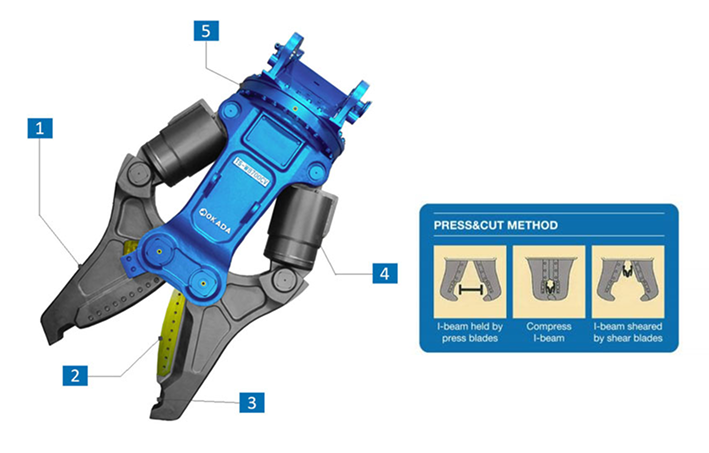

Features
1
The special casting alloy used delivers a lightweight crusher with superior durability.
2
The arched cutter blade provides robust cutting ability.
3
Adopts the press & cut method.
4
A high oil flow speed valve reduces cycle time.
5
The robust rotator features a durable bearing.
Specification
TS-WB series CUTTER
| UNIT | TS-WB600CV | TS-WB700CV | TS-WB800CV | TS-WB900CV | TS-WB1000CV | TS-WB1150CV | |
|---|---|---|---|---|---|---|---|
| Rotation Type | - | FR/HR | FR/HR | FR/HR | FR/HR | FR/HR | FR/HR |
| Operating Weight | kg | 2850/2940 | 4290/4290 | 5750/5750 | 8210/8210 | 10150/10150 | 11760/11760 |
| Overall Length | mm | 2640 | 3050 | 3340 | 3880 | 4170 | 4460 |
| Overall Width | mm | 1680 | 1650 | 1950 | 1940 | 2400 | 2360 |
| Max. Jaw Opening | mm | 710 | 930 | 1050 | 1190 | 1370 | 1600 |
| Cutter Blade Length | mm | 600 | 700 | 800 | 900 | 1000 | 1150 |
| Cutting Force (Center) | kN | 2300 | 2710 | 3000 | 2460 | 3675 | 3650 |
| Excavator Set Pressure | MPa | 35 | 35 | 35 | 35 | 35 | 35 |
| Suitable Carrier Range | Ton | 20-30 | 30-40 | 40-50 | 60-100 | 100-200 | 100-200 |
| Speed Valve | - | Yes | Yes | Yes | Yes | Yes | Yes |
Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
