TS-S series
TS-S250C
TS-S320C
TS-S430C
TS-S550C
TS-S660C

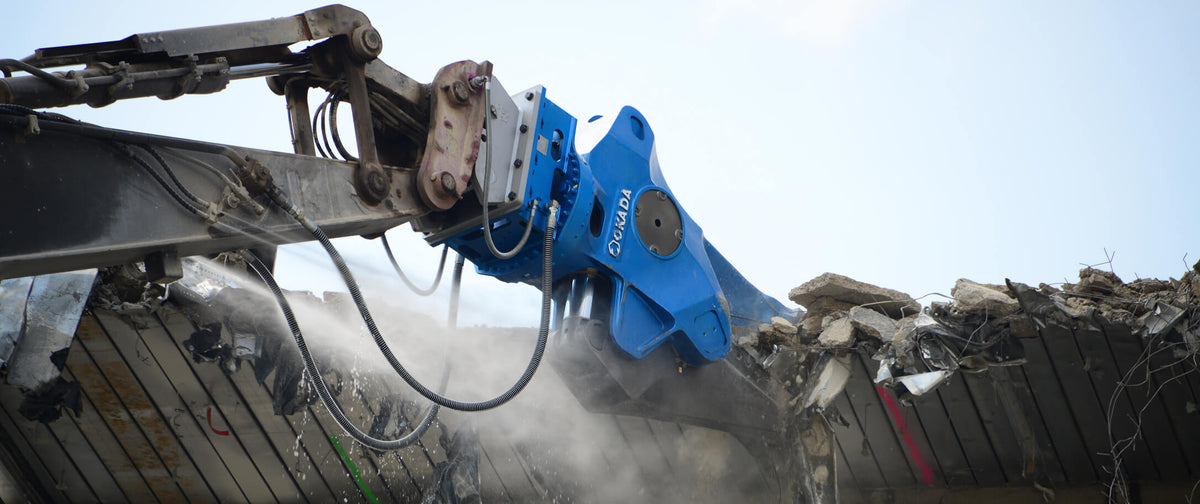

Designed for maximum versatility, the TS-S Multi-Crusher efficiently processes both reinforced concrete and steel structures, delivering powerful cutting and crushing performance in demanding demolition applications.

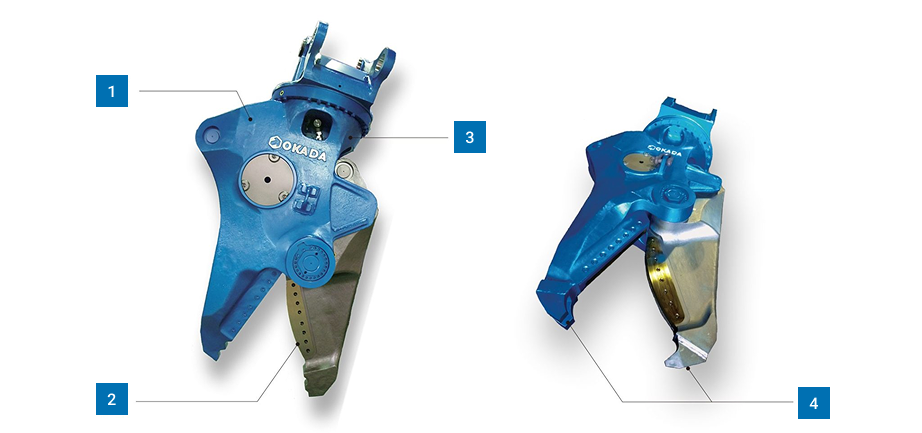

Features
1
The special casting alloy used delivers a lightweight crusher with superior durability.
2
The ARC blade provides outstanding shearing ability.
3
Strong rotator with a durable bearing.
4
Concrete tooth.
Specification
TS-S series
| UNIT | TS-S250C | TS-S320C | TS-S430C | TS-S550C | TS-S660C | |
|---|---|---|---|---|---|---|
| Rotation Type | - | FR | FR/HR | FR/HR | FR/HR | FR/HR |
| Operating Weight | kg | 370 | 880/900 | 1540/1600 | 2720/2800 | 3920/3920 |
| Overall Length | mm | 1155 | 1630 | 2055/2195 | 2445/2550 | 2835 |
| Overall Width | mm | 605 | 875 | 1115 | 1400 | 1618 |
| Cutter Blade Length | mm | 220/250 | 320/380 | 420/500 | 550/600 | 660/720 |
| Max. Jaw Opening | mm | 325 | 475 | 565 | 690 | 815 |
| Max. Blade Opening | mm | 220 | 340 | 400 | 515 | 630 |
| Cutting Force (at inner part) | kN | 340 | 745 | 1080 | 1910 | 2310 |
| Operating Pressure | MPa | 25 | 28 | 28 | 32 | 32 |
| Suitable Carrier Range | Ton | 3-6 | 9-15 | 10-25 | 20-35 | 30-50 |
| Speed Valve | - | - | - | - | - | - |
Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
