OMC series WOOD CUTTER
OMC160 ARTS/HR
OMC160 FIX
OMC-170PG ARTS/HR
The OMC Wood Cutter brings a unique saw-shaped blade to every logging challenge, slicing through root balls, stumps, and raw timber with efficient, clean precision. Choose the flexibility of rotating models (ARTS/HR) for multi-angle operation, or the reliability of a fixed model — both delivering 350 kN of crushing force on carriers from 11 to 22 tons.

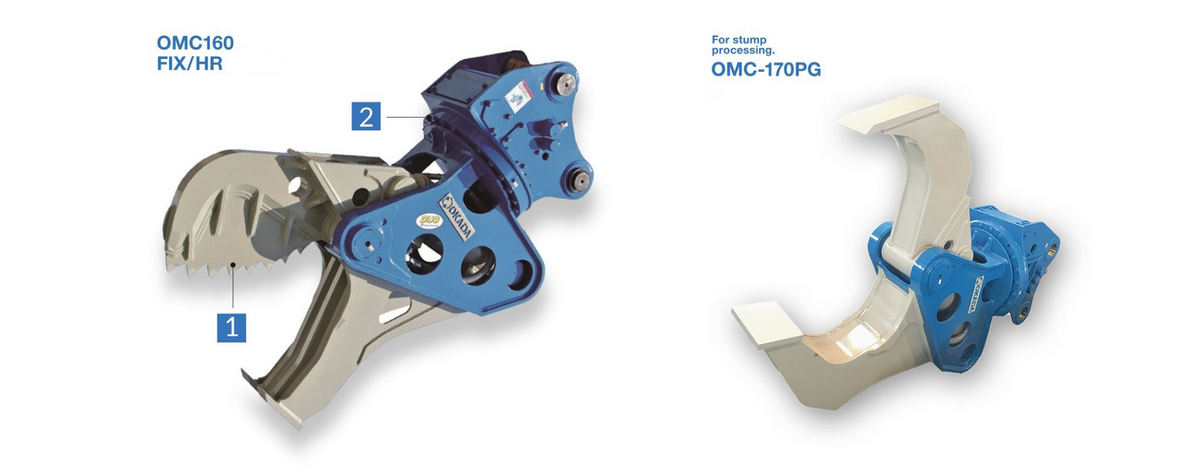

Features
1
A unique saw-shaped blade efficiently processes wood material.
2
Rotating models (ARTS/HR) and fixed models are available.
Specification
OMC series WOOD CUTTER
| UNIT | OMC160/HR | OMC160 FIX | OMC-170PG/HR | |
|---|---|---|---|---|
| Operating Weight | kg | 1570 | 1090 | 1570 |
| Overall Length | mm | 2100 | 1700 | 2240 |
| Overall Width | mm | 1595 | 1595 | 1710 |
| Max. Jaw Opening | mm | 710 | 710 | 865 |
| Crushing Force | kN | 350 | 350 | 350 |
| Excavator Set Pressure | MPa | 32 | 32 | 32 |
| Suitable Carrier Range | Ton | 11-22 | 11-22 | 11-22 |
| Speed Valve | - | - | - | - |
Note: The above specifications can be subjected to change without notice. The above specifications assume the use of an OKADA European flat mount design.
