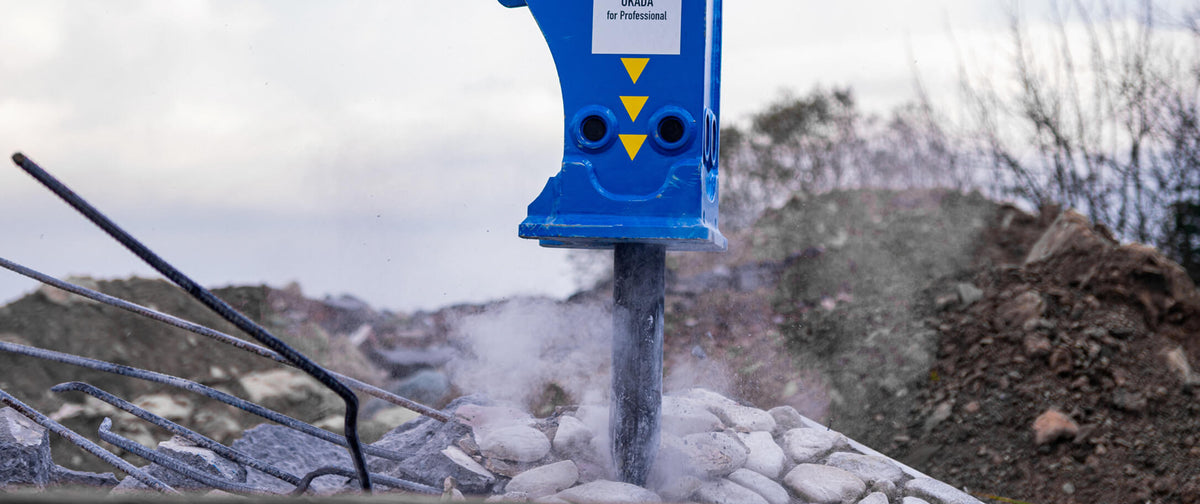

The elite of hydraulic breakers who inherited the DNA of the pioneers and aimed for the TOP of striking power, workability, and durability.

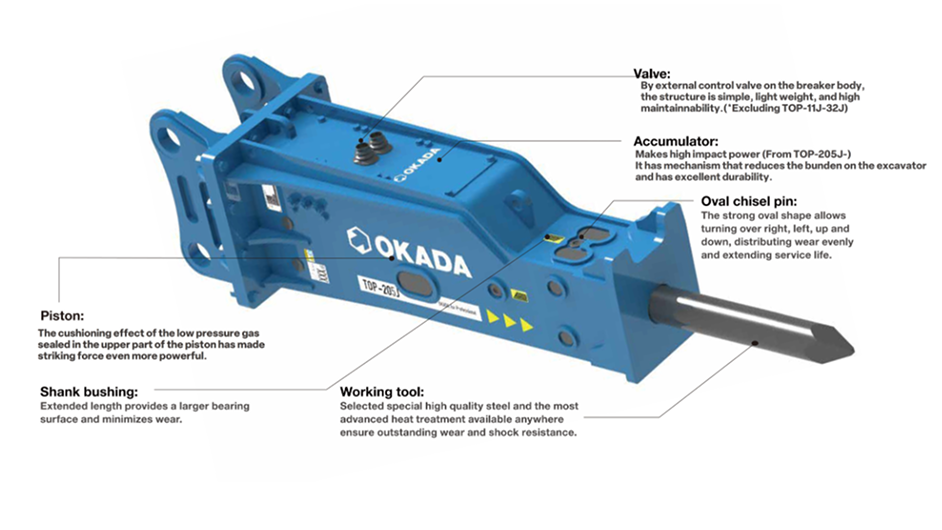

Features
Specification
TOP-J Series Small Range
| UNIT | TOP-11J | TOP-18J | TOP-22J | TOP-32J | TOP-43J | TOP-60J | |
|---|---|---|---|---|---|---|---|
| Operating Weight | kg | 100 | 140 | 180 | 260 | 340 | 460 |
| Overall Length | mm | 1150 | 1270 | 1450 | 1438 | 1654 | 1739 |
| Working Pressure | MPa | 9-12 | 9-12 | 9-12 | 11-16 | 11-16 | 11-16 |
| Oil consumption | L/min | 15-30 | 20-40 | 20-50 | 35-50 | 35-55 | 48-70 |
| Number of strikes | bpm | 800-1400 | 700-1200 | 600-1100 | 850-1150 | 600-850 | 740-950 |
| Chisel diameter | mm | 40 | 45 | 53 | 61 | 68 | 74 |
| Carrier Output Flow Range | lpm | 20-36 | 26-48 | 26-60 | 45-60 | 50-65 | 65-90 |
| Suitable Carrier Machine | Ton | 0.5-2.0 | 0.8-2.5 | 1.3-3.5 | 2.5-4.5 | 4.0-6.5 | 5.0-8.5 |
TOP-J Series Medium Range
| UNIT | TOP-70J | TOP-100J | TOP-110J | TOP-150J | TOP-205J | TOP-300J | |
|---|---|---|---|---|---|---|---|
| Operating Weight | kg | 520 | 880 | 1020 | 1230 | 1800 | 2670 |
| Overall Length | mm | 1891 | 2192 | 2302 | 2402 | 2726 | 3050 |
| Working Pressure | MPa | 12-16 | 14-18 | 14-18 | 14-18 | 15-18 | 16-18 |
| Oil consumption | L/min | 48-80 | 70-110 | 80-115 | 80-115 | 110-135 | 160-190 |
| Number of strikes | bpm | 730-970 | 550-1000 | 550-710 | 550-710 | 360-530 | 370-530 |
| Chisel diameter | mm | 85 | 105 | 110 | 122 | 135 | 150 |
| Carrier Output Flow Range | lpm | 65-95 | 105-140 | 120-140 | 120-140 | 160-200 | 220-280 |
| Suitable Carrier Machine | Ton | 5.0-10.0 | 9.0-15 | 10-15 | 13-20 | 18-26 | 24-36 |
TOP-J Series Heavy Range
| UNIT | TOP-350J | TOP-400J | TOP-800J | TOP-1000J | |
|---|---|---|---|---|---|
| Operating Weight | kg | 2900 | 4120 | 6150 | 7150 |
| Overall Length | mm | 3354 | 3802 | 4271 | 4500 |
| Working Pressure | MPa | 16-18 | 16-18 | 16-20 | 18-21 |
| Oil consumption | L/min | 200-240 | 220-280 | 320-420 | 380-450 |
| Number of strikes | bpm | 300-350 | 250-320 | 220-300 | 200-280 |
| Chisel diameter | mm | 155 | 170 | 190 | 210 |
| Carrier Output Flow Range | lpm | 280-310 | 310-360 | 380-480 | 420-500 |
| Suitable Carrier Machine | Ton | 28-45 | 40-60 | 60-80 | 75-120 |
